Übersicht
Microcontroller with xKB of programable memory:
Attiny13 = Microcontroller with 1KB
Attiny25 = Micocontroller with 2KB
Attiny45 = Microcontroller with 4KB
Attiny85 = Microcontroller with 8KB
CPU-Geschwindigkeit:
Attiny13/13A: default: 1,2Mhz (Fuse bit set: CKDIV8)
Attiny25/45/85: default: 1Mhz (Fuse bit set: CKDIV8)
max: 20MHz
Anzahl der Pins: 8Pin(s)
Anzahl der Ein-/Ausgänge: 6I/O(s)
Embedded-Schnittstelle: I2C, SPI
Attiny13/25/45/85:
Versorgungsspannung, min.: 2.7V
Versorgungsspannung, max.: 5.5V
Attiny13A:
Versorgungsspannung, min.: 1.8V
Versorgungsspannung, max.: 5.5V
DC Current per I/O Pin: 40.0 mA
DC Current VCC and GND Pins: 200.0 mA

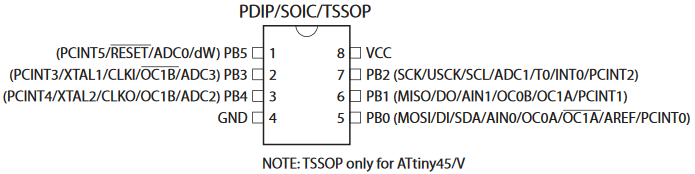

Pinout

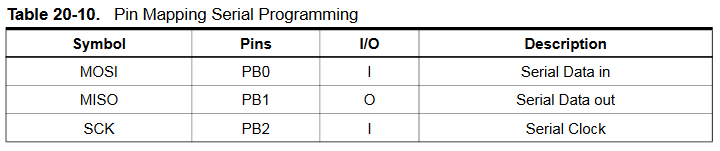

ISP Programming

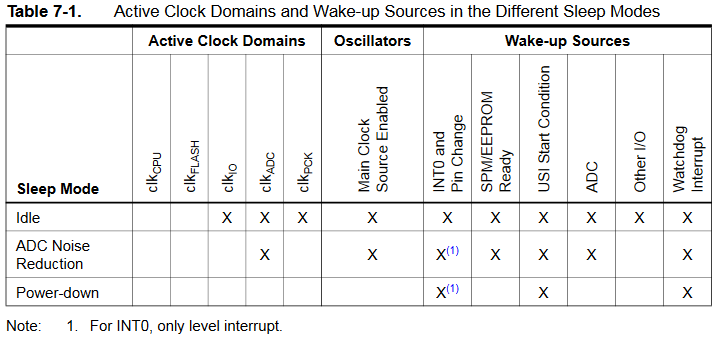

Sleep Modes
/*
* The 5 different modes are:
* SLEEP_MODE_IDLE -the least power savings
* SLEEP_MODE_ADC
* SLEEP_MODE_PWR_SAVE
* SLEEP_MODE_STANDBY
* SLEEP_MODE_PWR_DOWN -the most power savings
*/
set_sleep_mode(SLEEP_MODE_IDLE);
sleep_enable(); // enables the sleep bit in the mcucr register
sleep_cpu(); // here the device is actually put to sleep
// -------------------------------------------------
// THE PROGRAM CONTINUES FROM HERE AFTER WAKING UP
// -------------------------------------------------
sleep_disable(); // disable sleep...
Power consumption
Der Stromverbrauch wurde gemessen mit:
- set_sleep_mode(SLEEP_MODE_PWR_DOWN);
- ADC deaktiviert
Siehe folgender Artikel: technoblogy.com: ATtiny Low Power
Disable Analog to Digital Converter ADC:
ADCSRA &= ~(1 << ADEN);
Disable ADC Makro:
#define adc_disable() (ADCSRA &= ~(1 << ADEN)) // disable ADC
Arduino Methode:
power_adc_disable();
Interrupt
ISR(PCINT0_vect) { // pin change interrupt
}
ISR(INT0_vect) { // external interrupt
}
- ISR needed for sleep to not reset program after interrupt
- Every PCINTx will rise PCINT0_vect
- Typically global variables are used to pass data between an ISR and the main program. To make sure variables shared between an ISR and the main program are updated correctly, declare them as volatile.
GIMSK |= (1 << INT0); // Enable external Interrupt

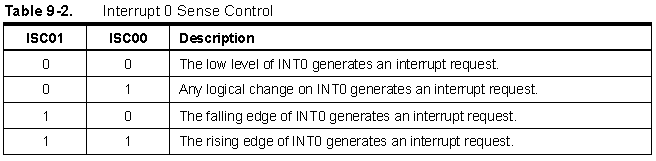

MCUCR &= (0 << ISC01); // The low level of INT0
MCUCR &= (0 << ISC00); // generates an interrupt request
sei(); // enable interrupts
cli(); // disable interrupts
Arduino Methode:
interrupts ();// enable interrupts
noInterrupts(); // disable interrupts
Libraries
315Mhz and 433Mhz Manchester encoding RF library which works on Arduino and ATTiny
Nützliche Links
Atmel: ATtiny Datasheet pdf
The pinouts of the most popular AVR processors
mikrocontroller.net: AVR-Tutorial: Interrupts
gammon.com.au: Interrupts
ATtiny: Fuse Restore using HVSP
mikrocontroller.net: Sleep-Mode
